Surgery, from Freehand to Guided sugery
Based on the simulation results with LANDmarker®, highly accurate surgery is performed with a guide designed and manufactured with iLAND.
- Compatible with intraoral scanners!
- 3 types of Surgical Guide
- Can be provided in guide design STL!
- Surgical Drill
- Jaw Model

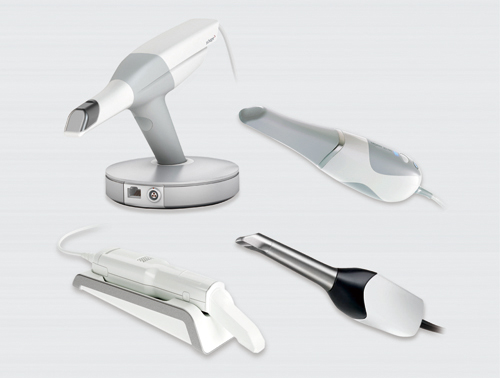

Compatible with intraoral scanners!
Now you can make surgical guides without models!
Landmark Guide™ can create surgical guides not only for study models but also for STL data scanned by each intraoral scanner (IOS).
3 types of Surgical Guide
Landmark Guide™ has 3 lineups: "single Guide" that supports only initial drills, "Full Guide" that supports the guide kit of each implant system and supports up to implantation and "Custom Guide" that create various guides according to the request.

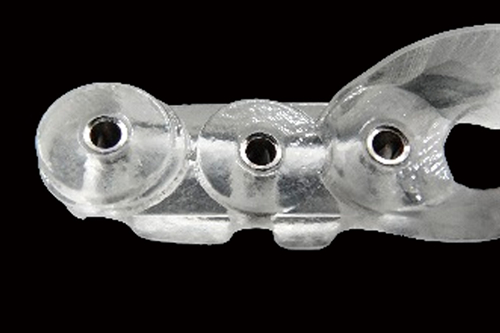

1. Single Guide
Supports a single drill diameter
Available in four different tube diameters: 1.6mm, 2mm, 2.75mm, and3 mm. No special surgical kit is required.
*Side entry is not possible.
*We do not sell 1.6mm diameter drills.

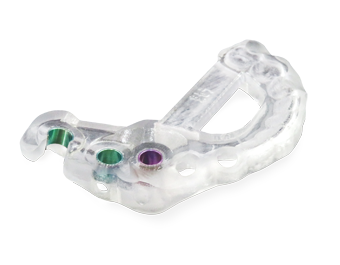

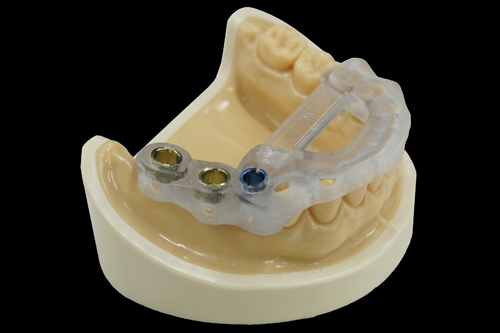

2. Full Giude
Compatible with implant manufacturer's guide system
Currently supported system:
bicon, Biohorizons, BrainBase, camlog, GC, Implant Direct, KENTEC, KYOCERA, Neoss, Nobel Biocare, Straumann, Zimmer Biomet（Biomet 3i, spline, Tapered Screw-Vent, LODI）
Operation video using Full Guide
Dr. Satiru Shintani(Tokyo, Japan)

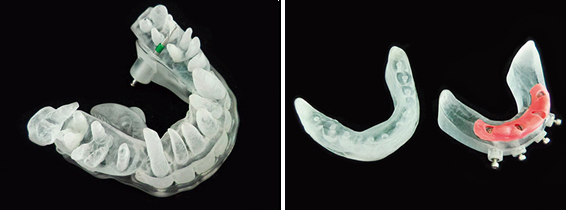

3. Custom Giude
The following guides can be created to meet a variety of requirements.
- Guide for orthodontic anchor screws
- Lateral window guide for sinus lift
- Jawbone model for Provisional restoration

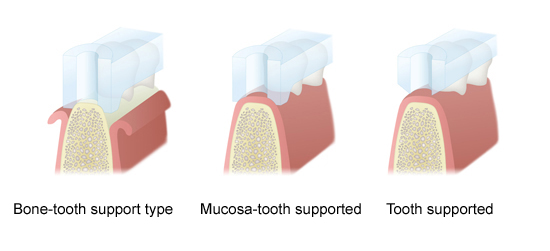

Suitable for any case
Flexible guide system for any combination of bone, mucosa, teeth, or single to edentulous defects.

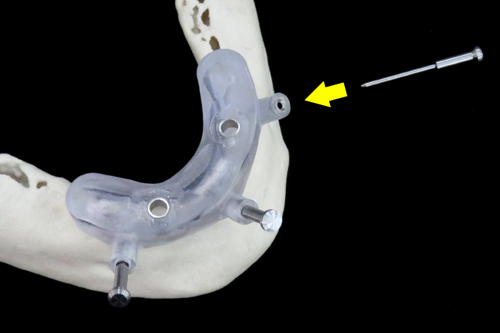

Also supports fixing from the buccal side
A new option "Side-Fixing" added to the Landmark Guide.
This allows the guide to be fixed from the cheek side not only for Multi Guide, but also for Single guide and Full guide.

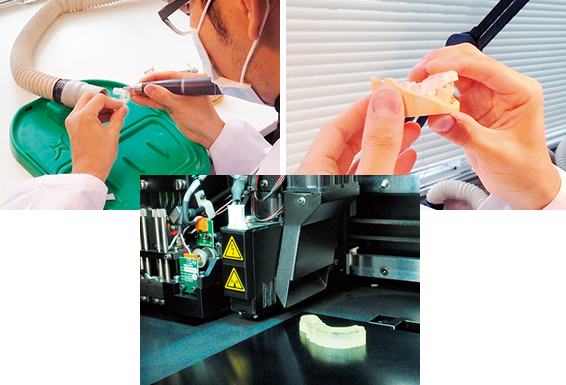

Strict quality control by dental technicians
Manufactured in Japan, all guides are strictly checked by a specialized dental technician.
Reliable quality backed by a wealth of abundant experience.

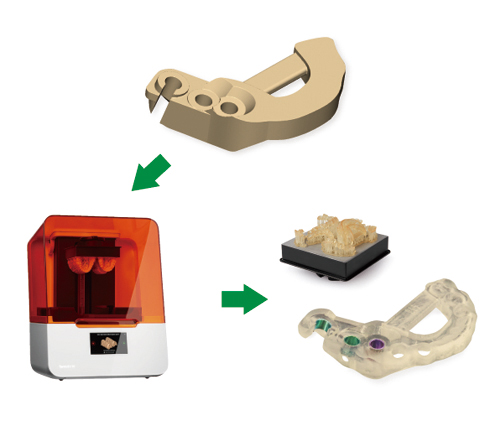

Can be provided in guide design STL!
It is possible to deliver not only the completed guide product but also the design data (STL format) of Landmark Guide™ created by iLAND, which you can use to create the guide on your own 3D printer.
*The diagnosis of the implant placement will be done by the clinic.

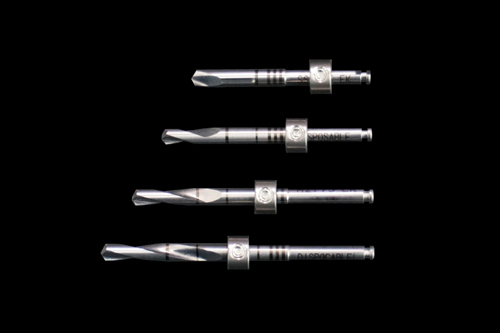

Surgical Drill
Special drill compatible with Landmark Guide™. With a stopper, the depth of implantation can be controlled according to the simulation.

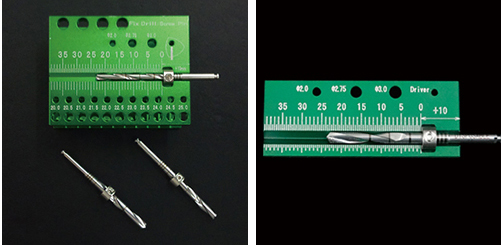

Control the depth with a stopper
Controlling the depth of implant with a movable stopper. Ruler box and Ruler board make it easy to adjust the stopper.

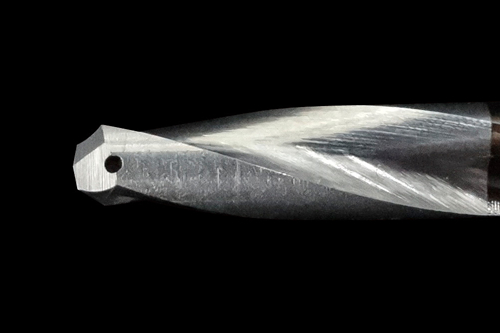

Internal water injection drill
The internal water injection type effectively cools the bone even when the guide is used.
Compatible with almost all water injection nozzles (within 23 mm).
Disposable
Disposal for each patient, no maintenance required for internal water injection holes clogged with bone powder and blood.
Wide range of products
There are three diameters: 2mm, 2.75mm, and 3mm, and four lengths: SS (29mm), S (34mm), M (39mm), and L (44mm).
It can be used for molar cases in patients with a small amount of opening.

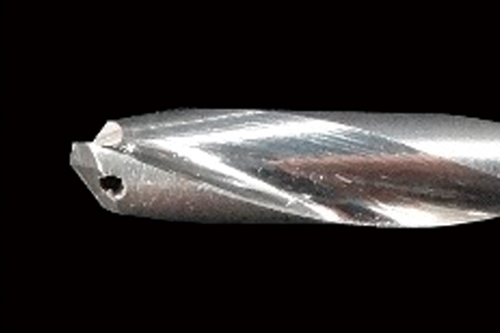

Improved sharpness
The flute of the drill (escape route for shavings) has been improved to improve the cutting capacity by approximately 20% compared to our conventional products (according to our research).

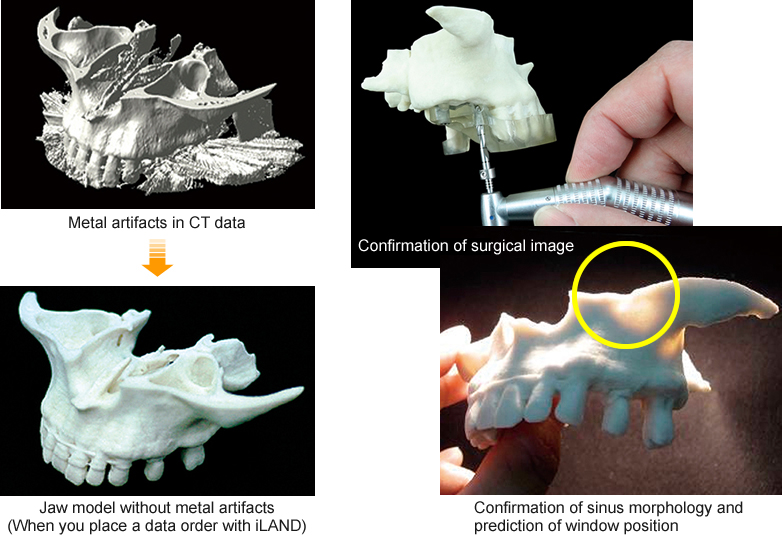

Jaw Model
Create a jaw model from the simulation data of LANDmarker®. The data synthesized by iLAND clearly reproduces not only the bone condition but also the shape of the teeth.
By using it together with the Landmark Guide™, it is effective not only for checking the surgical image but also as a patient explanation tool.
